Save up to 50% energy usage compared to traditional fluorescent fittings
DALI, 1-10V (0-10V) and PUSH alternative driver available
TP(a) rated diffuser
Flicker free
UGR < 19
Direct backlit lighting with wide-angle optics
Optional anti-glare diffusers available
Overview

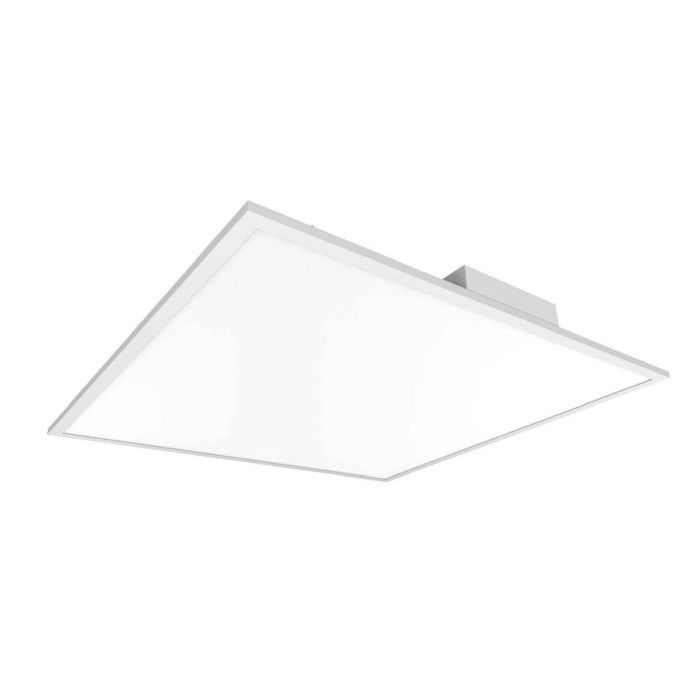

The Rydal is Kosnic’s standard 600 by 600 panel, with an energy saving compared to fluorescent fittings and a low glare, flicker free output, making an excellent direct LED replacement for retrofits.
Technical summary
Input voltage supply
220-240Vac 50/60Hz
Inrush current (peak/duration)
16 A / 200 μs
Default power
30 W
Driver maximum power
29 W
Driver output current
750 mA
Power factor
0.95
Driver power factor
>= 0.90
Default CCT
4,000 K
SDCM of CCT
< 6
CRI
82
Dimmable
No
Flicker
< 1%
Maximum lumen output
3,200 lm
Emergency luminous flux
500 lm
L70B50 lifetime @Ta 25°C
60,000 h
L80B10 lifetime @Ta 25°C
60,000 h
L90B10 lifetime @Ta 25°C
54,000 h
Nominal lifetime
50,000 h
Glow wire temperature
850°C
Blue light hazard
RG1
Weight
1.45 kg
Dimensions (L × W × D)
595 × 595 × 34 mm
Energy efficiency class
E
General information
Ambient temperature range
-20°C to 50°C
IK rating
IK04
IP rating
IP20
Protection rating
Class II
Installation area
Internal
L80B10 lifetime @Ta 25°C
60,000 h
Compliance
LVD: EN 60598-1:2024, EN 60598-2-1:2021, EN 60598-2-2:2012
EMC: EN 55015:2019+A11:2020, EN 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, EN 61547:2023
Optional gear
Product code
Description
Type
EMPAD02
Niah, 2W universal emergency pad for LED panel
Emergency Module
UEM03
3W Universal Emergency Module
Emergency Module
UEM03/ST
3W Universal Emergency Module, Self Test
Self-test Emergency Module
UEM04
4W Universal Emergency Module Pro
Emergency Module
UEM04/ST
4W Universal Emergency Module Pro Self Test
Self-test Emergency Module
CYC030TDC30-90
30W DALI2 1-10V primary push dim driver (KL30C-PDiiV)
Dimmable Driver
DRC40/DA
Dimmable Driver: 40W DALI2 1-10V primary push dim driver
Dimmable Driver
UEM04/DA
4W DALI Universal Emergency Module Pro
Emergency Module
EMPAD02/ST
Niah self test 2W universal emergency pad for LED panel
Self-test Emergency Module
Accessories
Product code
Description
Type
ALDAG-0606
Alden 595 × 595mm anti-glare diffuser
Diffuser
SUS04
LED Panel & Slim Line 2 suspension kit (4 cables per bag)
Suspension Kit
SMT0606
Surface-mount frame for 600 × 600 panel, White
Mount Frame
SAS0606
Clips for Burgess ceilings
Clips/Brackets
REC0606
Recessed-mount frame 595 × 595mm white
Mount Frame
SUS04/25
Suspension kit 2.5m Alden & Nevis & Slim Line 2 (4 cables per bag)
